CH 15 Amp 1-Pole Combination Arc Fault Circuit Breaker with Trip Flag

Stock status: In stock
Country: United Kingdom

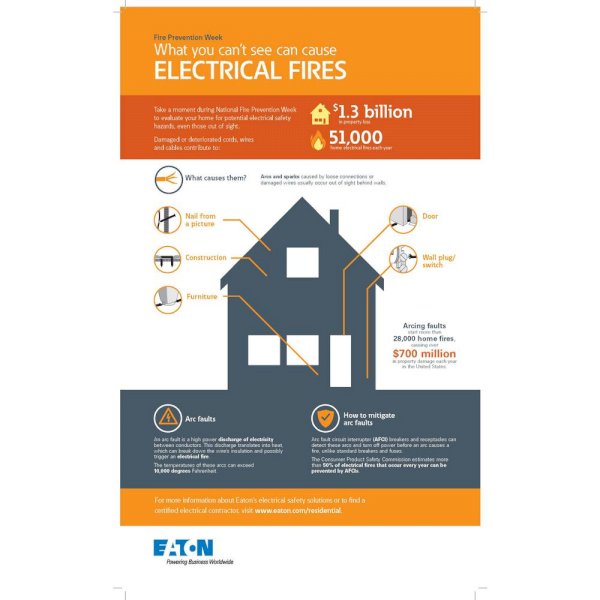

Eaton's Arc Fault Circuit Interrupters (AFCIs) use advanced electronic technology to reduce fire hazards in electrical circuits, including connected cords. They meet the requirements of the UL Standard for Safety, UL 1699 for devices that reduce the effects of persistent arcing faults that may pose a risk of fire under certain conditions. Arcing creates high intensity heating at the point of the arc resulting in burning particles that may over time ignite surrounding material, such as wood framing or insulation. The CHFCAF115 is a 15 Amp combination type breaker that includes all of the protection of the branch feeder, plus it directly detects persistent low current arcing faults down to 5 amps to efficiently protect against fire hazards in the cords connected to outlets.

  • Combination type includes all of the protection of the branch feeder, plus it directly detects persistent low current arcing faults down to 5 amps to efficiently protect against fire hazards in the cords connected to outlets
  • Branch feeder mitigates parallel arcing faults, which produce the most energy of all arcing faults, in the complete circuit including connected cords for enhanced safety
  • For use in type CH load centers
  • Amp: 15 Amp
  • Interrupt rating-10 kAIC
  • Voltage rating is 120/240V

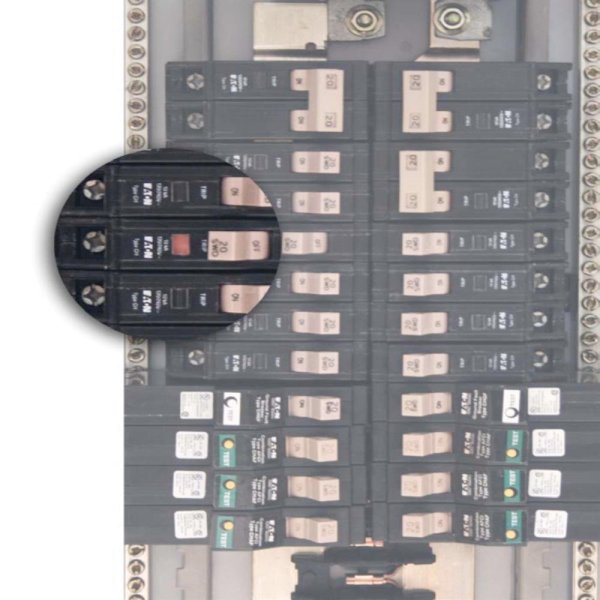

  • Flag visually confirms “Tripped” status, making it easy for the homeowner to identify
  • Standard LED indicates one of seven trip codes to simplify circuit diagnostics





Product Depth (in.) 1.13
Product Height (in.) 8
Product Width (in.) 4
Breaker Type Single Pole
Electrical Product Type Breaker
Interruption Type CAFCI
Maximum Amperage (amps) 15
Mounting type Plug In
Number of Poles 1
Pack Size 1
Power Distribution Features No Additional Features
Product Weight (lb.) .5lb
Returnable 90-Day
Voltage (volts) 240
Certifications and Listings 1-UL Listed,ANSI Certified
Manufacturer Warranty Lifetime per the Warranty Policy
