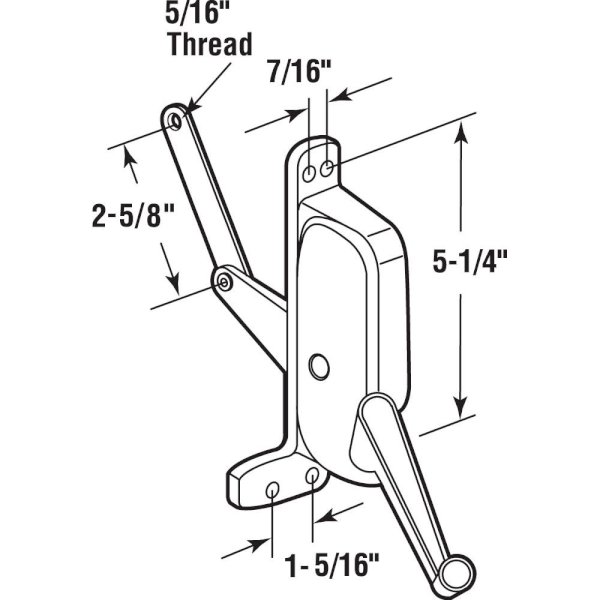

This is an awning operator of aluminum diecast construction with a gray baked enamel finish used on Pan-American Windows. It is right-handed with a matching crank handle with a 2-5/8 in. link arm. It has an L-shaped mounting hole pattern that has two top holes that are 5-1/4 in. from center of the top holes to the center of the bottom hole and the two horizontal holes in the bottom leg are 1-5/16 in. on center.
| Arm length (in.) | 2.62 |
|---|---|
| Product Depth (in.) | 2.375 |
| Product Height (in.) | 9.75 |
| Product Length (in.) | 9.75 in |
| Product Width (in.) | 4.813 in |
| Brand Compatibility | Pan American |
| Builders Hardware Product Type | Window Operator |
| Finish | Aluminum |
| Finish Family | Silver Metallic |
| Material | Metal |
| Operator type | Awning |
| Orientation | Vertical / Horizontal |
| Package Quantity | 1 |
| Returnable | 90-Day |
| Window Repair Type | Crank Handle & Cover Plates |
| Manufacturer Warranty | Goods are warranted against defects in manufacturing for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if produ |
