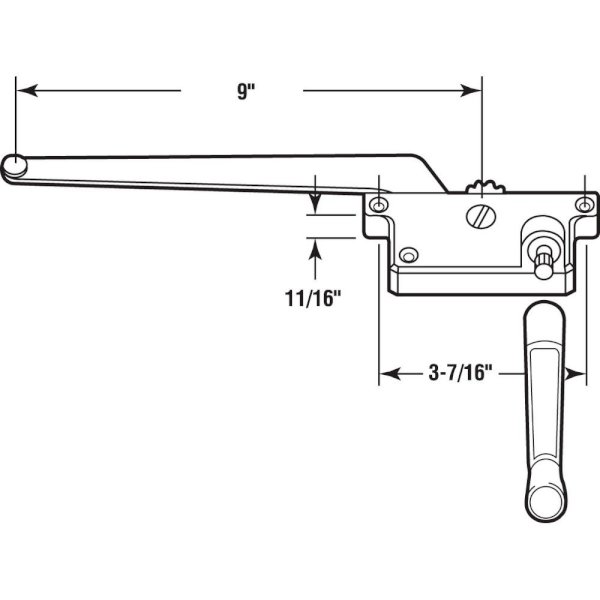

This casement window operator is a right handed, bronze, surface mount body type with four mounting holes in the top of the body and mounts directly onto the sill. It has a 9 in. steel arm with a round disc on the tip. The disc slides in the Prime-line part H 3595 casement track located on the bottom edge of the casement window. This is worm gear driven by a 3/8 in. crank spindle. Matching crank handle that fits onto the crank spindle and installation screws are included.
| Arm length (in.) | 9 |
|---|---|
| Product Depth (in.) | 1.625 |
| Product Height (in.) | 13.25 |
| Product Length (in.) | 13.25 |
| Product Width (in.) | 3.875 |
| Brand Compatibility | Various |
| Builders Hardware Product Type | Window Operator |
| Finish | Bronze |
| Finish Family | Bronze/Copper Metallic |
| Material | Cast Metal |
| Operator type | Single-arm casement |
| Orientation | Vertical / Horizontal |
| Package Quantity | 1 |
| Returnable | 90-Day |
| Window Repair Type | Casement Operators |
| Manufacturer Warranty | Goods are warranted against manufacturing defects for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products |
