STHD 26-1/8 in. 12-Gauge Galvanized Strap-Tie Holdown

Stock status: In stock
Country: United Kingdom
Description Specifications

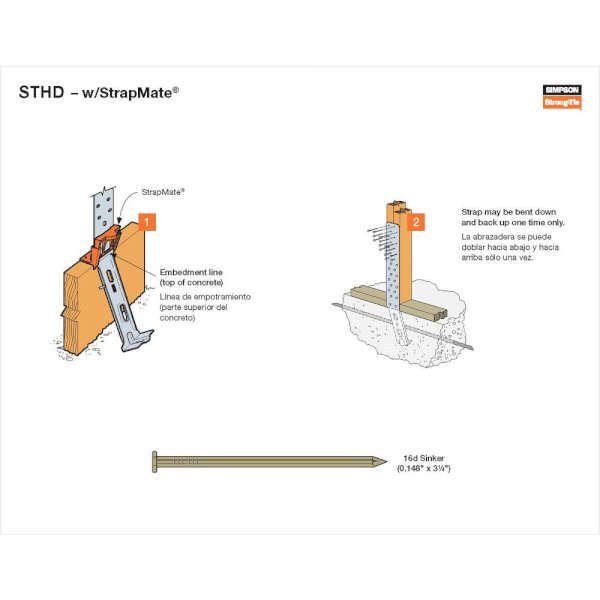

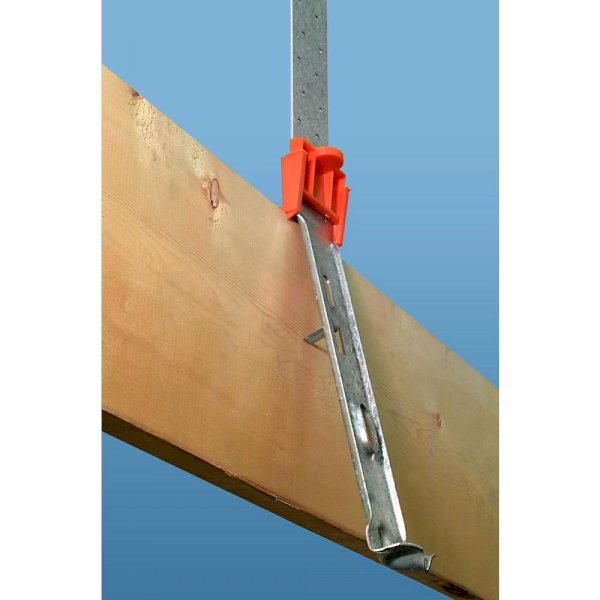

The STHD is an embedded strap-tie holdown offering high load capacity and a staggered nail pattern to help minimize splitting. The STHD incorporates many features that aid correct installation and improve performance. When installed on the forms with the StrapMate® strap holder the unique design of the STHD delivers enhanced stability before and during the pour to help prevent both parallel and perpendicular movement.

  • The nailing pattern allows for nailing to the edges of double 2x's
  • Strap nail slots are countersunk to provide a lower nail head profile

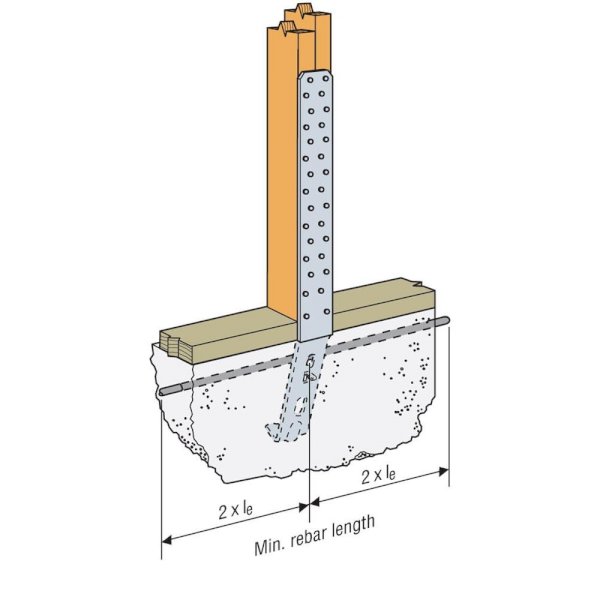

  • The slots below the embedment line enable increased front-to-back concrete bond and help to reduce spalling
  • Standard strap length: 26-1/8 in.
  • Made from 12-gauge steel
  • Galvanized (G90) for extra corrosion resistance
  • Install 0.148 in. x 3-1/4 in. nails
Product Depth (in.) 4.75
Product Length (in.) 34
Product Width (in.) 3 in
Color Family Silver
Connector Finish G90 Galvanized
Connector recommendation Holdown
Fasteners Included Fasteners Not Included
Features No Additional Features
Gauge 12
Material Steel
Number of Pieces 1
Package Quantity 1
Product Weight (lb.) 4.3lb
Returnable 90-Day
Staggered Nail Pattern Staggered
Strap Type Tie
Manufacturer Warranty Yes
