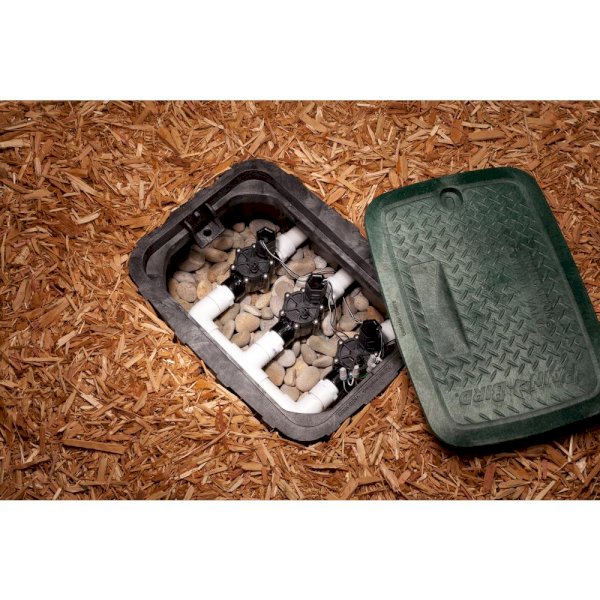

This residential and light commercial grade in-line valve replaces Rain Bird and other irrigation valves installed below ground with 1 inch female threaded inlet and outlet. It can be used with any 24 volt AC irrigation timer. Its unique reverse-flow design helps prevent flooding in the event of internal diaphragm failure, keeping the valve closed and saving water. This valve can be applied with all types of watering devices including Rain Bird spray heads (1800, 600), and rotors (22SA, 32SA, 42SA+, 52SA, LG3 and AG5). Use in-line valves in locations where the use of a pressure vacuum breaker (PVB) or a double-check valve is required by code to protect against backflow. Check your local codes to determine what type of valve is required. After installation and before startup, always the flush system of dirt and debris manually using the valve's external bleed screw.
| Inlet Size (in.) | 1 |
|---|---|
| Outlet Size (in.) | 2 or less |
| Product Height (in.) | 5 in |
| Product Length (in.) | 4.75 in |
| Product Width (in.) | 3.37 in |
| Compatible Pipe Material | PVC |
| Connection | Female Pipe Thread |
| Installation | Below Ground |
| Irrigation System Component | Valve |
| Material | Plastic |
| Maximum Pressure (psi) | 150 |
| Maximum Working Temperature (F) | 125 |
| Number of Outlets | 1 |
| Operation | Automatic |
| Package Quantity | 1 |
| Pressure Rating | 15-150psi. |
| Product Weight (lb.) | 5.8 lb |
| Returnable | 90-Day |
| Thread Type | Pipe Thread |
| Valve Type | In-Line |
| Manufacturer Warranty | If a purchaser of any new Rain Bird consumer product becomes dissatisfied with it for any reason, he may return it to the retailer where it was purchased within a reasonable time for a full r |
