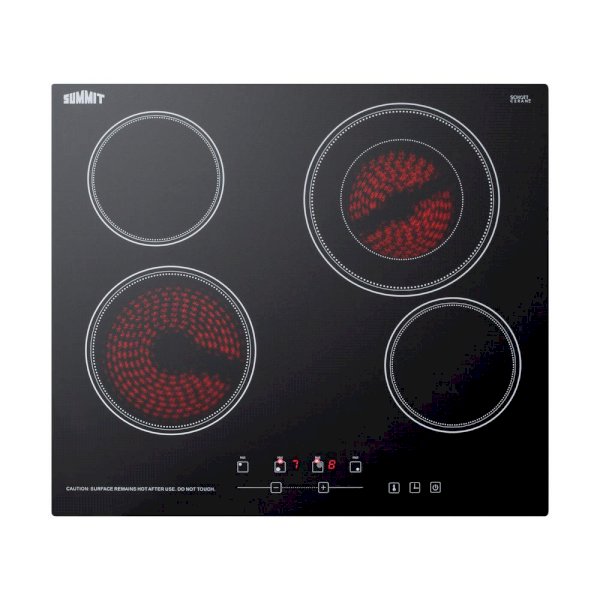

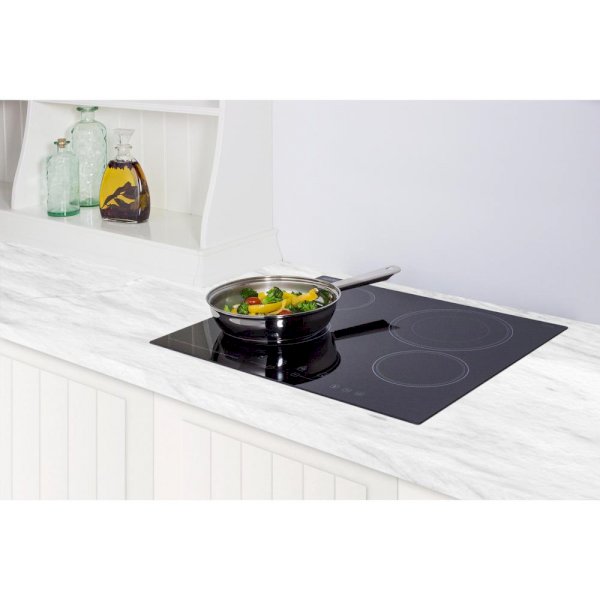

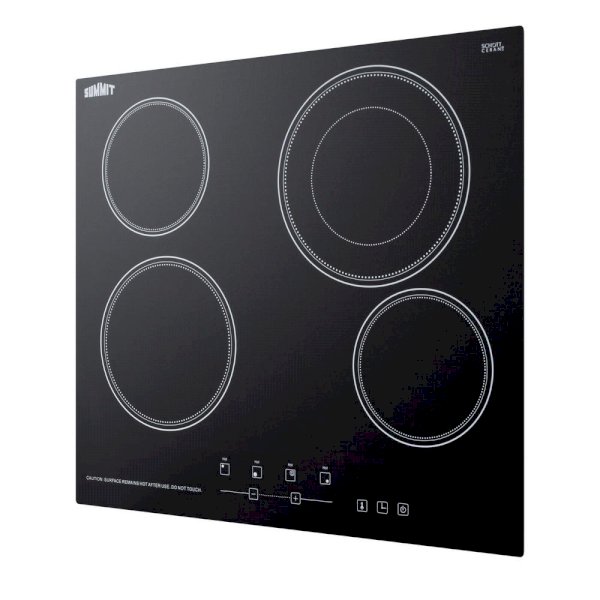

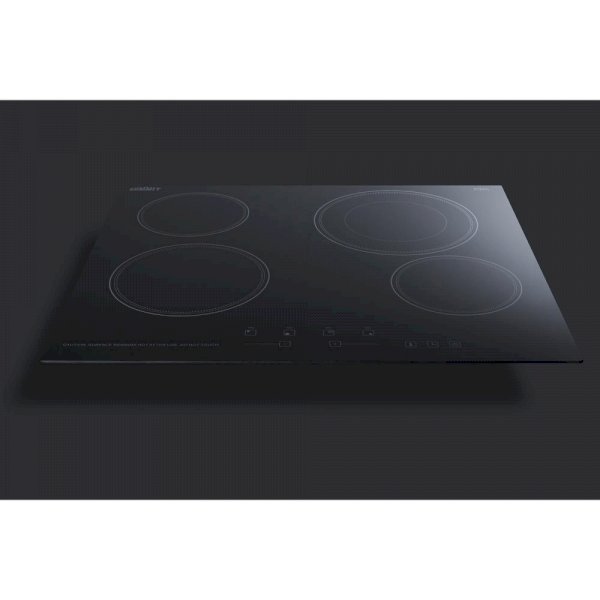

24 in. Radiant Electric Cooktop in Black with 4 Elements including Dual Zone Element

Stock status: In stock
Country: United Kingdom

SUMMIT's collection of smooth-top radiant cooktops offers an easy-to-clean design with modern style built for smaller kitchen spaces. The CR4B23T5B is a 24 in. wide 230-Volt radiant cooktop designed to fit popular 22 in. W x 19-1/2 in. D counter cutouts. The surface is made from smooth Schott ceramic glass in a jet black finish for a durable, modern look. This unit does not ship with a power cord and must be hard-wired by a professional. Unlike many other 24 in. wide cooktops, the CR4B23T5B includes an extra large 2200-Watt 8 in. element to accommodate large cooking vessels and offer faster heating when boiling water. For added versatility, this dual zone element can also be used at a 5 in. Dia for smaller pots and pans. The front right and rear left 5-1/2 in. elements cook at 1200-Watt, while the front left zone is 7 in. wide with an 1800-Watt operation to handle larger meals. The digital touch controls are located in the front for easier accessibility, preventing users from reaching over hot burners when cooking. The temperature is easy to adjust at the touch of a button, with 9 power levels for each burner. This unit also includes a timer function that lets you program a power level and cook time (up to 99 minutes). The burner turns off automatically when the cooking duration has finished. Safety features include a child lock function, automatic shutoff after 2 hours, and residual heat indicators for all 4 elements.

  • 4 burner radiant cooktop includes with 6400-Watt of cooking power
  • Digital touch controls offer easy and intuitive temperature management
  • Dual size burner accommodates various sized cookware for more cooking versatility
  • Includes a high output 2200-Watt and 1800-Watt burner for faster boiling
  • Smooth ceramic glass surface ensures easy cleanup
  • Child lock function allows you to freeze the controls to help prevent accidents
  • Each burner includes a residual heat indicator to warn users if the surface is still too hot to touch
  • ADA compliant design for easier accessibility

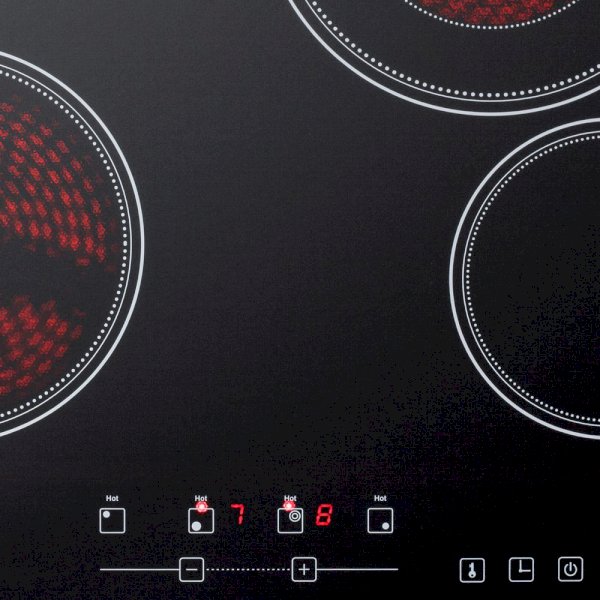

  • Front-located controls offer added safety, preventing users from reaching over hot burners
  • 9 power levels offer a wide range of cooking heats to accommodate a variety of cooking applications
  • Timer allows you to program either burner to heat at a specified level for up to 99 minutes
  • Safety cut-off function offers added protection from unsupervised heating
  • One year limited manufacturers warranty
  • Product available for home delivery only. Installation is not offered at time of delivery; check with your local The Home Depot store for installation options
Cooktop Size 24 in.
Cut-Out Front to Back Depth (in.) 19.5
Cut-Out Height (in.) 3.2
Cut-Out Left to Right Width (in.) 22.0
Element #1 Size (in.) 5.5
Element #2 Size (in.) 8.1
Element #3 Size (in.) 5.5
Element #4 Size (in.) 7
Product Depth (in.) 20.5 in
Product Height (in.) 2.0 in
Product Width (in.) 23.25 in
Amperage (amps) 30 A
Appliance Category Cooktop
Appliance Type Electric Cooktop
Color/Finish Black
Color/Finish Family Black
Commercial/Residential Residential
Control Location Front
Cooktop Control Type Digital Controls
Cooktop Features Control Lockout,Digital Display,Dual Element,Indicator Light- Heating Element On,Indicator Light- Hot Surface Indicator Light,Power Element
Cooktop Surface Type Radiant
Element #1 Wattage 1200
Element #2 Wattage 2200
Element #3 Wattage 1200
Element #4 Wattage 1800
Element No.1 Type Radiant
Element No.2 Type Radiant
Element No.3 Type Radiant
Element No.4 Type Radiant
Fuel Type Electric
Number of Elements 4 element
Product Weight (lb.) 20.0 lb
Returnable 90-Day
Voltage (volts) 230
Certifications and Listings ETL Listed
Manufacturer Warranty 1 Year Parts & Labor
