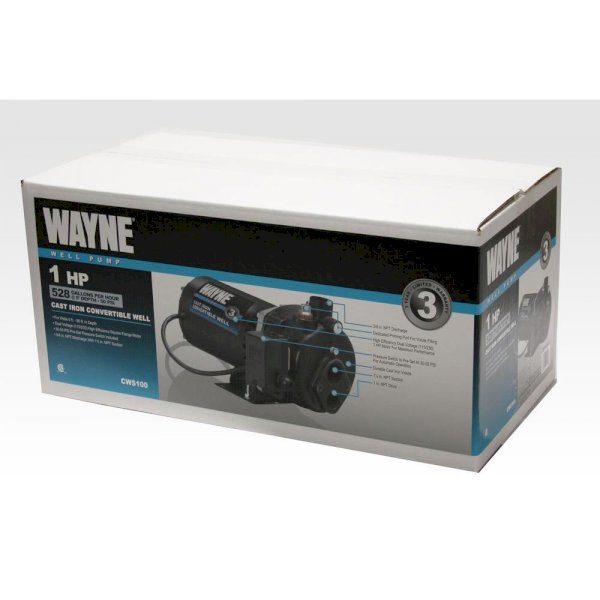

The Wayne CWS100 is a 1 HP durable, cast iron convertible well jet pump that performs up to 528 GPH at 5 ft. of depth - (50 psi). Cast iron volute is built for years of service and reliability. Includes pre-set pressure switch.
| Product Depth (in.) | 22.30 |
|---|---|
| Product Height (in.) | 10.30 |
| Product Width (in.) | 11.50 |
| Amperage (amps) | 13 |
| Cord Length (ft.) | 0 |
| Discharge Flow 0 ft. @ 40 PSI (gallons/hour) | 1056 |
| Discharge Flow 15 ft. @ 40 PSI (gallons/hour) | 642 |
| Discharge Flow 25 ft. @ 40 PSI (gallons/hour) | 528 |
| Discharge Flow 40 ft. @ 40 PSI (gallons/hour) | 384 |
| Discharge Flow 50 ft. @ 40 PSI (gallons/hour) | 750 |
| Discharge Flow 60 ft. @ 40 PSI (gallons/hour) | 234 |
| Discharge Flow 90 ft. @ 40 PSI (gallons/hour) | 72 |
| Features | No Additional Features |
| Head Pressure (ft.) | 90 |
| Housing Material | Cast-Iron |
| Included | No Additional Items Included |
| Inlet Connection | Threaded female |
| Jet Pump Product Type | Convertible |
| Maximum Horsepower (hp) | 1 |
| Maximum Pressure (psi) | 50 |
| Maximum Working Temperature (F) | 120 |
| Minimum working temperature (F) | 40 |
| Number of Impellers | 1 |
| Outlet Connection | Threaded female |
| Power Type Required | AC |
| Product Weight (lb.) | 40lb |
| Pump Switch Type | Switchless |
| Returnable | 90-Day |
| Voltage | 120v,240v |
| Certifications and Listings | CSA Certified |
| Manufacturer Warranty | 3 |
