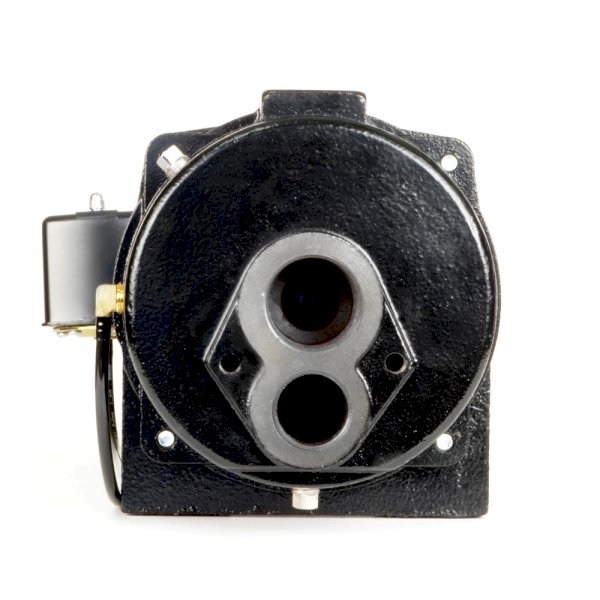

The EFCWJ5 1/2 HP convertible jet pump can be utilized in shallow or deep well installations. Ideal for shallow well applications with pumping levels to 25 ft. and pumping levels to 60 ft. for deep well applications. Jet package included with pump, well injector casting, jet nozzle, venture tubes and hardware for both Shallow Well and Deep Well applications.
| Product Depth (in.) | 21.65 |
|---|---|
| Product Height (in.) | 13.38 |
| Product Width (in.) | 11.61 |
| Amperage (amps) | 9 |
| Cord Length (ft.) | 0 |
| Discharge Flow 0 ft. @ 40 PSI (gallons/hour) | 1200 |
| Discharge Flow 15 ft. @ 40 PSI (gallons/hour) | 312 |
| Discharge Flow 25 ft. @ 40 PSI (gallons/hour) | 240 |
| Discharge Flow 40 ft. @ 40 PSI (gallons/hour) | 168 |
| Discharge Flow 50 ft. @ 40 PSI (gallons/hour) | 384 |
| Discharge Flow 60 ft. @ 40 PSI (gallons/hour) | 102 |
| Discharge Flow 90 ft. @ 40 PSI (gallons/hour) | 0 |
| Features | Thermal Overload Protection |
| Head Pressure (ft.) | 131.48 |
| Housing Material | Cast-Iron |
| Included | No Additional Items Included |
| Inlet Connection | Threaded female |
| Jet Pump Product Type | Convertible |
| Maximum Horsepower (hp) | .5 |
| Maximum Pressure (psi) | 57 |
| Maximum Working Temperature (F) | 77 |
| Minimum working temperature (F) | 35 |
| Number of Impellers | 1 |
| Outlet Connection | Threaded female |
| Power Type Required | AC |
| Product Weight (lb.) | 37.84lb |
| Pump Switch Type | Switchless |
| Returnable | 90-Day |
| Voltage | 115v,230v |
| Certifications and Listings | No Certifications or Listings |
| Manufacturer Warranty | 12 month warranty |
