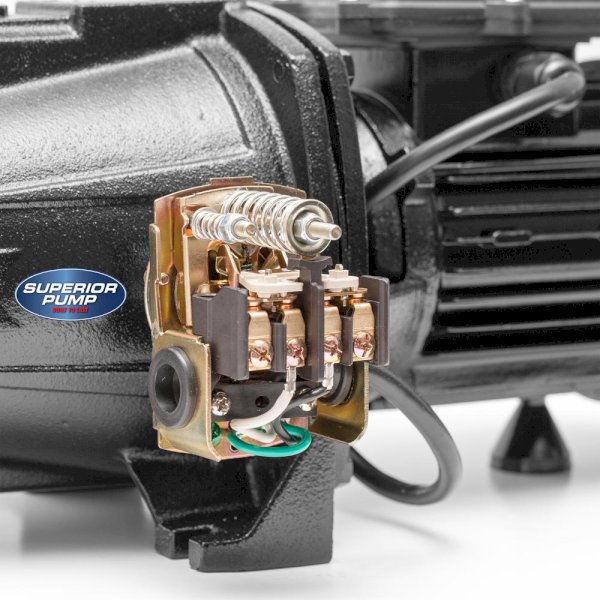

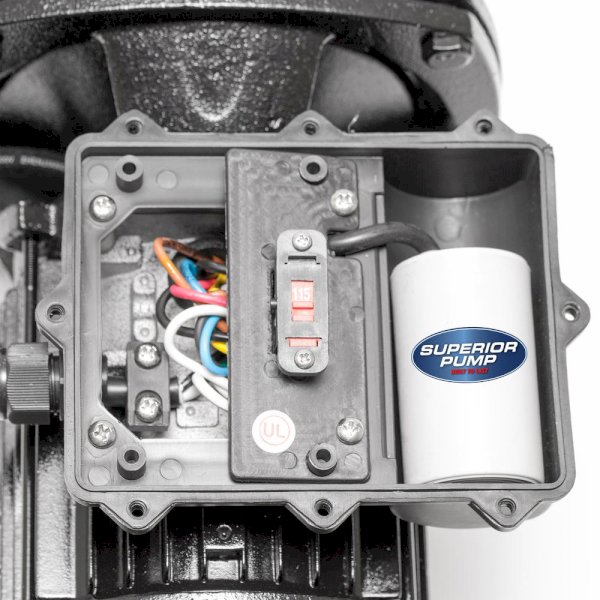

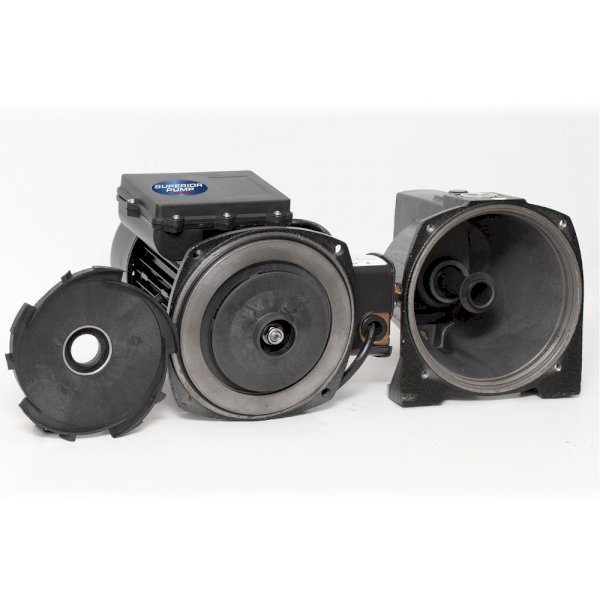

The Superior Pump 94505 1/2 HP Jet Pump features a rugged cast iron pump body for durability. Designed for shallow well applications the 94505 will work with wells up to 25 ft. in depth. The pump features a pre-mounted, fully adjustable pressure switch preset at 20/40 psi. A dual voltage motor, with built-in thermal overload protection, can be set for 115-Volt or 230-Volt. A high quality glass filled thermoplastic impeller and diffuser are designed to move up to 600 GPH at 1 ft. of lift. The pump is built using a cast iron seal plate and offers 1-1/4 in. NPT suction/1 in. NPT discharge. Package includes 1 jet pump and 1 pump owner's manual.
| Product Depth (in.) | 17.25 |
|---|---|
| Product Height (in.) | 8 |
| Product Width (in.) | 10.5 |
| Amperage (amps) | 6.4 |
| Cord Length (ft.) | 0 |
| Discharge Flow 0 ft. @ 40 PSI (gallons/hour) | 600 |
| Discharge Flow 15 ft. @ 40 PSI (gallons/hour) | 492 |
| Discharge Flow 25 ft. @ 40 PSI (gallons/hour) | 408 |
| Discharge Flow 40 ft. @ 40 PSI (gallons/hour) | 0 |
| Discharge Flow 50 ft. @ 40 PSI (gallons/hour) | 0 |
| Discharge Flow 60 ft. @ 40 PSI (gallons/hour) | 0 |
| Discharge Flow 90 ft. @ 40 PSI (gallons/hour) | 0 |
| Features | No Additional Features,Thermal Overload Protection |
| Head Pressure (ft.) | 25 |
| Housing Material | Cast-Iron |
| Included | No Additional Items Included |
| Inlet Connection | Threaded female |
| Jet Pump Product Type | Shallow Well |
| Maximum Horsepower (hp) | .5 |
| Maximum Pressure (psi) | 67 |
| Maximum Working Temperature (F) | 120 |
| Minimum working temperature (F) | 32 |
| Number of Impellers | 1 |
| Outlet Connection | Threaded female |
| Power Type Required | AC |
| Product Weight (lb.) | 33lb |
| Pump Switch Type | Pressure |
| Returnable | 90-Day |
| Voltage | 115v,230v |
| Certifications and Listings | 1-UL Listed |
| Manufacturer Warranty | 3 Year Limited |
