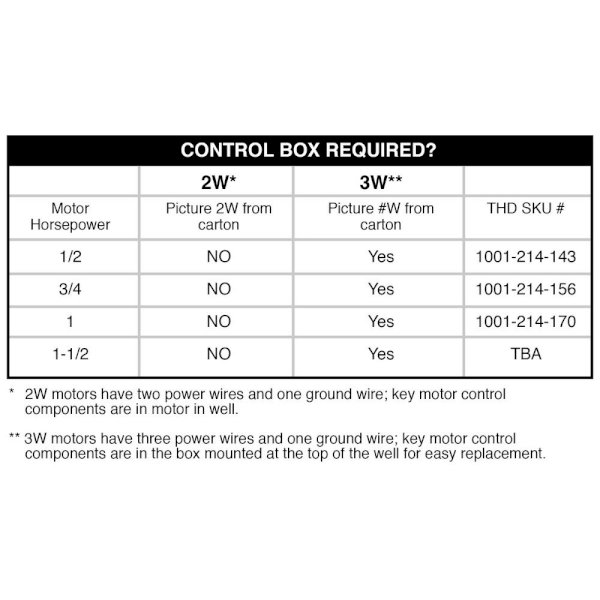

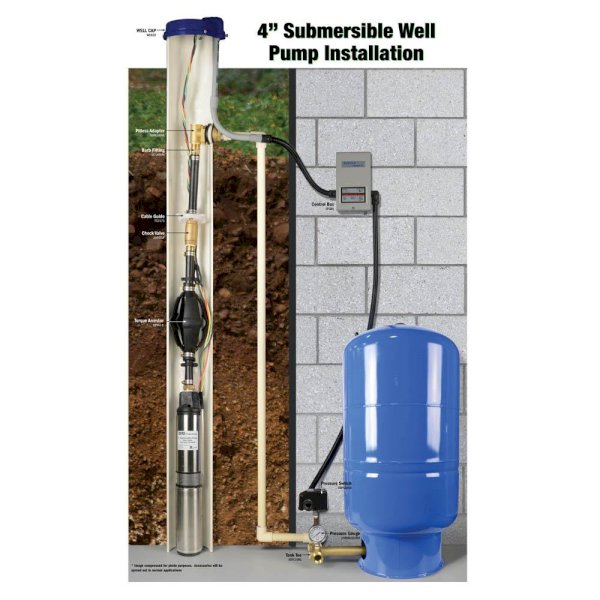

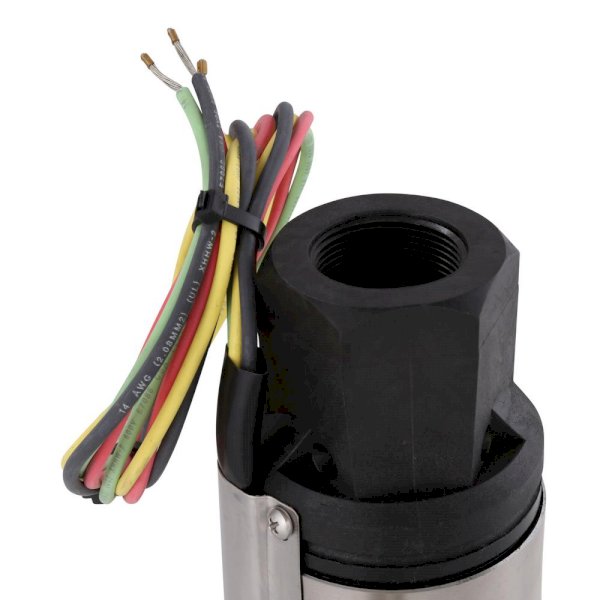

The Everbilt 3/4 HP Submersible water well installs in wells with minimum of 4 in. internal diameter well casing. The pump motor is 3-Wire design. A control box is required, sold separately.
| Maximum Pumping Depth (ft.) | 150 |
|---|---|
| Product Depth (in.) | 27.56 |
| Product Height (in.) | 4 |
| Product Width (in.) | 4 |
| Features | Corrosion Resistant,Submersible |
| Head Pressure (ft.) | 40 |

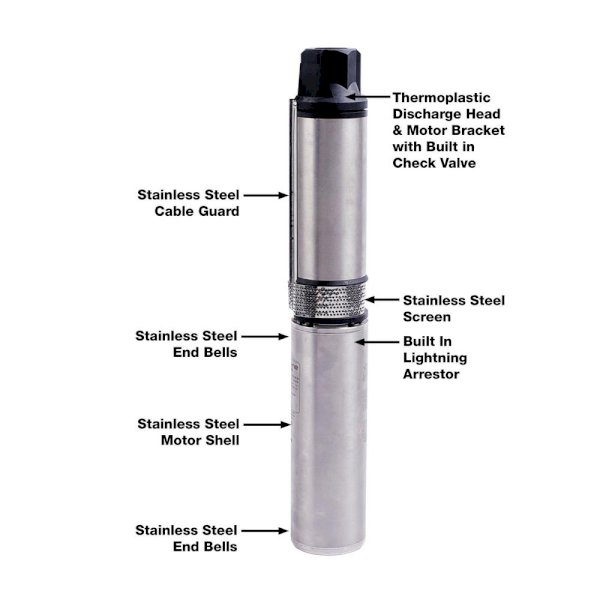

| Housing Material | Stainless steel |
| Included | No Additional Items Included |
| Inlet Connection | Barb/rib |
| Maximum Discharge Flow (gallons/hour) | 660 |
| Maximum Discharge Pressure (psi) | 50 |
| Maximum Horsepower (hp) | .75 |
| Outlet Connection | Threaded female |
| Product Weight (lb.) | 21.2lb |
| Returnable | 90-Day |

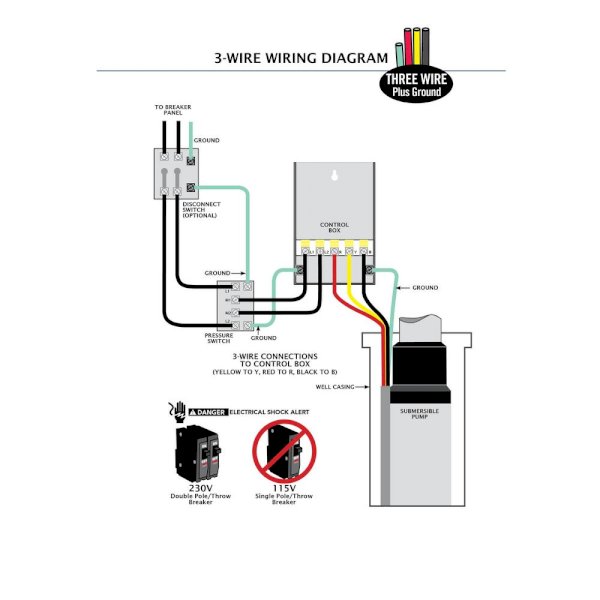

| Wiring Configuration | 3-Wire |
| Certifications and Listings | CSA Listed |
| Manufacturer Warranty | 3 Years |
