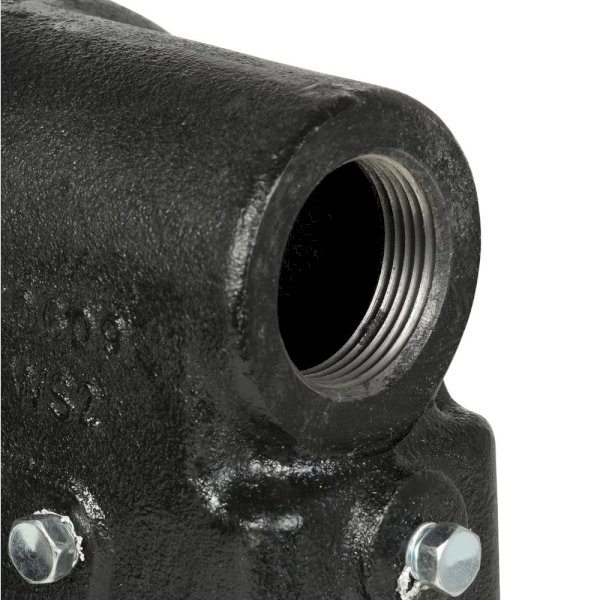

The Wayne 1/2 HP Cast Iron Shallow Well Jet Pump features a high-efficiency square-flange motor that is thermally protected to help prevent overheating. The volute is constructed of durable cast iron, with a corrosion resistant, reinforced thermoplastic impeller and diffuser. The pump includes a dedicated priming port for convenient volute filling.
| Product Depth (in.) | 12 |
|---|---|
| Product Height (in.) | 20 |
| Product Width (in.) | 12 in |
| Amperage (amps) | 5.5 |
| Cord Length (ft.) | 0 |
| Discharge Flow 0 ft. @ 40 PSI (gallons/hour) | 600 |
| Discharge Flow 15 ft. @ 40 PSI (gallons/hour) | 492 |
| Discharge Flow 25 ft. @ 40 PSI (gallons/hour) | 408 |
| Discharge Flow 40 ft. @ 40 PSI (gallons/hour) | 0 |
| Discharge Flow 50 ft. @ 40 PSI (gallons/hour) | 570 |
| Discharge Flow 60 ft. @ 40 PSI (gallons/hour) | 0 |
| Discharge Flow 90 ft. @ 40 PSI (gallons/hour) | 0 |
| Features | No Additional Features |
| Head Pressure (ft.) | 40 |
| Housing Material | Cast-Iron |
| Included | No Additional Items Included |
| Inlet Connection | Threaded female |
| Jet Pump Product Type | Shallow Well |
| Maximum Horsepower (hp) | .5 |
| Maximum Pressure (psi) | 50 |
| Maximum Working Temperature (F) | 103 |
| Minimum working temperature (F) | 33 |
| Number of Impellers | 1 |
| Outlet Connection | Threaded female |
| Power Type Required | AC or DC |
| Product Weight (lb.) | 39lb |
| Pump Switch Type | Electronic |
| Returnable | 90-Day |
| Voltage | 115v,230v |
| Certifications and Listings | 1-UL Listed |
| Manufacturer Warranty | 3 Year Limited Warranty |
