HUS Galvanized Face-Mount Joist Hanger for 2x10

Stock status: In stock
Country: United Kingdom
Description Specifications

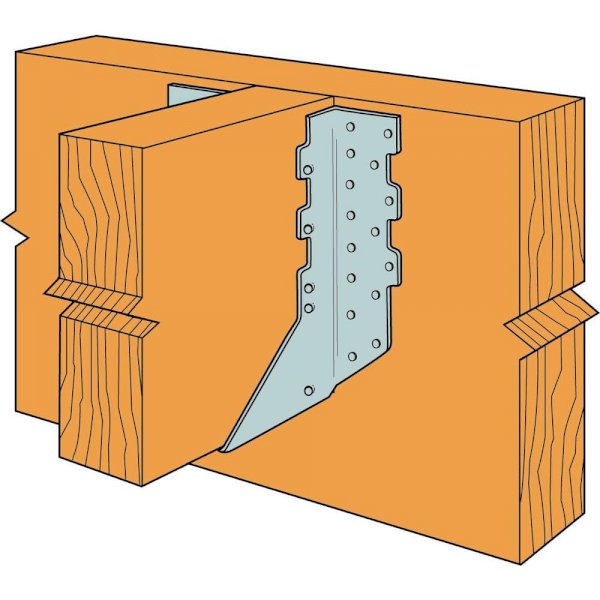

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. HUS hangers are designed for applications where higher load values are needed.

  • Features double-shear nailing which distributes the load through two points on each joist nail for greater strength
  • Allows for the use of fewer nails, faster installation, and the use of standard nails for all connections
  • Do not bend or remove tabs
  • Seat width: 1-5/8 in.
  • Nominal joist size: 2x10
  • Made from 16-gauge steel
  • Galvanized (G90) for extra corrosion resistance
  • Install with 0.162 in. x 3-1/2 in. nails
Joist Hanger Size 2x10
Product Depth (in.) 3
Product Height (in.) 9.09375
Product Width (in.) 5.625 in
Connector Finish G90 Galvanized
Fasteners Included Fasteners Not Included
Features No Additional Features
Gauge 16
Hanger Flange Type Face Mount Flange
Hanger Modifications None
Material Steel
Number of Pieces 1
Package Quantity 1
Product Weight (lb.) 0.99lb
Returnable 90-Day
Manufacturer Warranty Yes
