20 Amp 1 in. Single-Pole Combination AFCI Circuit Breaker

Stock status: In stock
Country: United Kingdom
Description Specifications

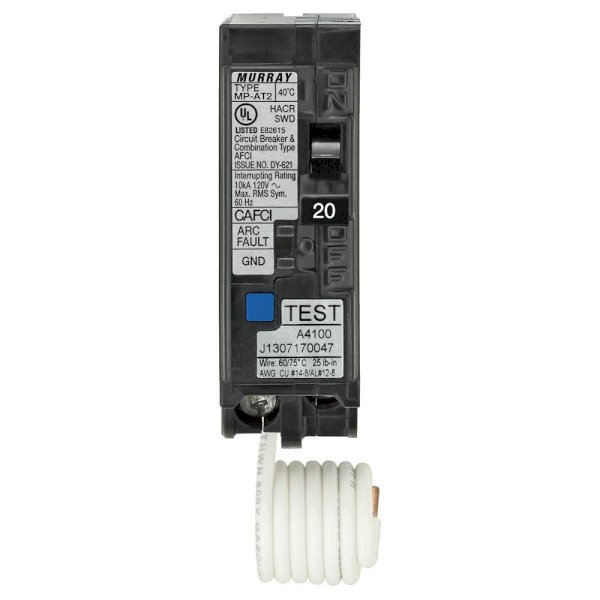

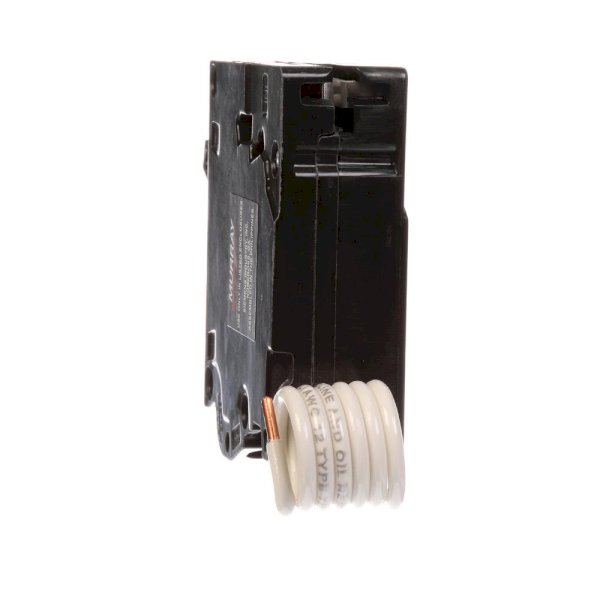

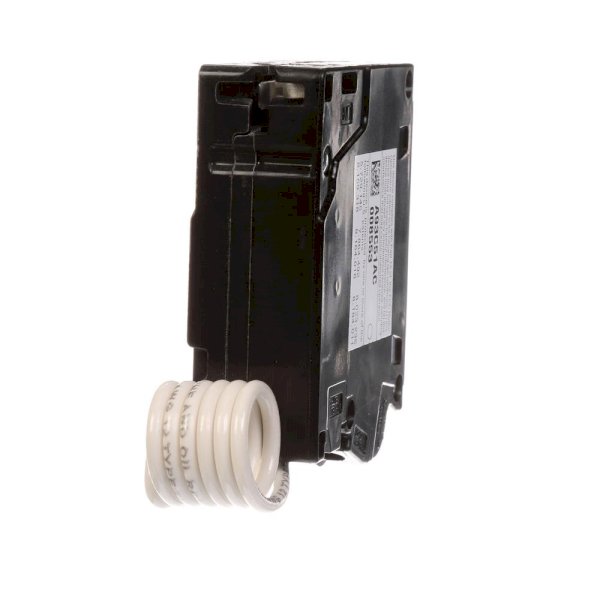

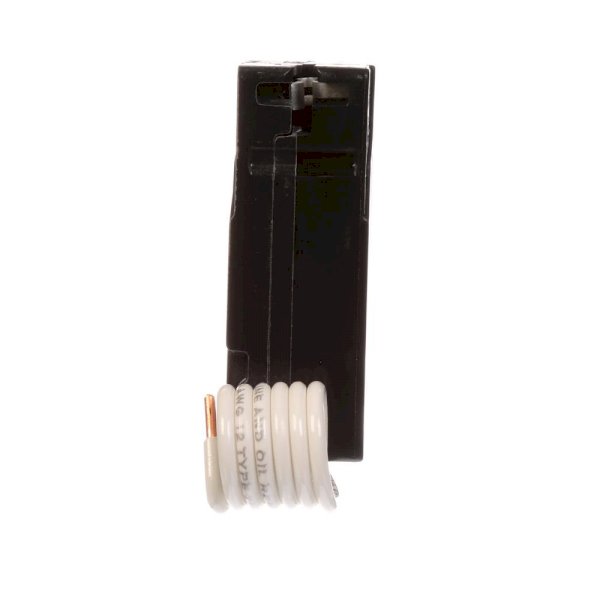

This Murray 20 Amp 1 in. Single Pole Combination AFCI Circuit Breaker trips to the center position and features LED trip indicators. This combination breaker is intended for use as a circuit breaker and AFCI device. This breaker is UL listed.

  • 1/4 in. more wiring bend space than the previous design
  • LED trip indicators
  • Both lugs at the same angle for easier wiring
  • 120 VAC and available with interrupting rating of 10kA, 22kA, or 65kA
  • Plug-In branch circuit breakers for Murray single phase load centers
  • Bolt-on branch circuit breakers for Siemens panelboards
  • #14 - #8 AWG copper, #12 - #8 AWG aluminum wire range
  • Torque rating: 25 lb. in.
  • UL listed
Product Depth (in.) 1.5 in
Product Height (in.) 6.5 in
Product Width (in.) 6.5 in
Breaker Type Single Pole
Electrical Product Type Breaker
Interruption Type CAFCI
Maximum Amperage (amps) 20
Mounting type Plug In
Number of Poles 1
Pack Size 1
Power Distribution Features CAFI Interrupter
Product Weight (lb.) 0.4 lb
Returnable 90-Day
Voltage (volts) 120
Certifications and Listings 1-UL Listed
Manufacturer Warranty 1 Year
